Belleville Washer / Disc Spring

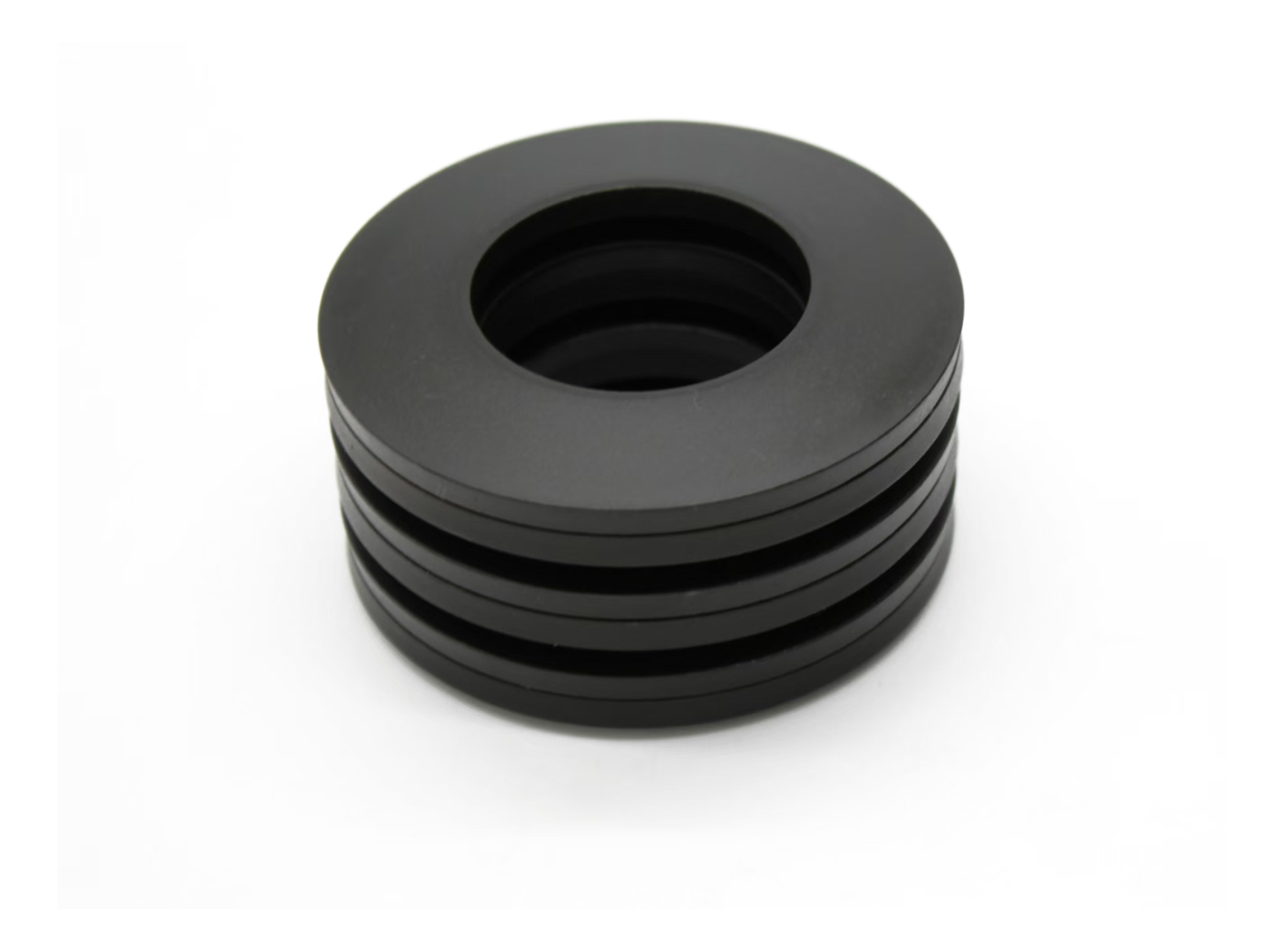

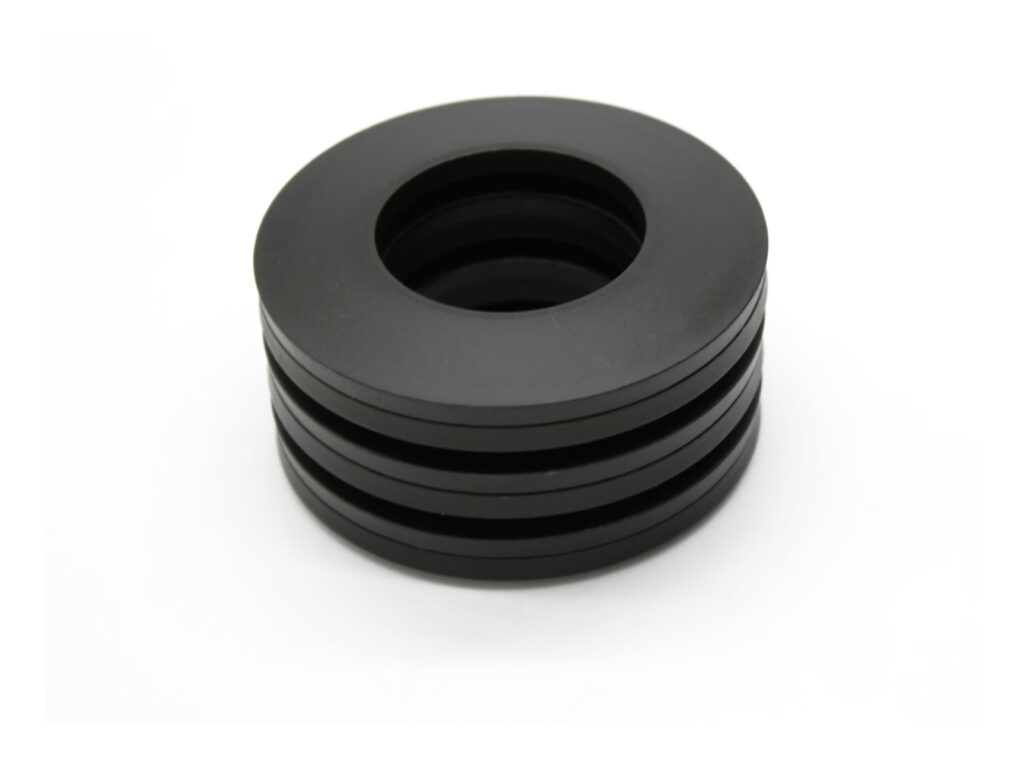

Stacked black oxide disc springs for preload & damping

Belleville washers (disc springs) are conical spring washers that deliver high spring force in a very small installation space. Used singly or stacked, they maintain bolt preload, compensate for settling and thermal expansion, and absorb shock and vibration. We produce disc springs to DIN 2093 / EN 16983 or your drawing in spring steel and stainless steel, with a black oxide and oil finish as standard.

High spring force in a compact installation space
Stack in series, parallel or combined for the required load–deflection curve
Hardened and tempered spring steel, 42–52 HRC per DIN 2093
Black oxide + oil finish; phosphate or zinc flake on request

Material: Spring steel (65Mn, 50CrV4 / 51CrV4, C75S), stainless steel (SS301 / SS304 / 17-7PH)
Standard: DIN 2093 / EN 16983, DIN 6796, or custom drawing
Thickness: 0.2 – 10 mm

Get a Quote WhatsApp

IATF 16949
Custom to drawing
Factory direct

Belleville washers (disc springs) are conical spring washers that deliver high spring force in a very small installation space. Used singly or stacked, they maintain bolt preload, compensate for settling and thermal expansion, and absorb shock and vibration. We produce disc springs to DIN 2093 / EN 16983 or your drawing in spring steel and stainless steel, with a black oxide and oil finish as standard.

Flexible Stacking Arrangements

Disc springs can be stacked to match almost any load–deflection requirement. Stacking in series (alternating direction) multiplies the deflection, stacking in parallel (same direction) multiplies the load, and combined stacks give both. Tell us the required load, travel and installation space, and our engineers will recommend the right size and arrangement.

Why Choose Changbiao

As a factory-direct manufacturer with 20+ years of experience, we control the whole process — die design, stamping, heat treatment, surface finishing partners, inspection and packing — under an IATF 16949:2016 system. Custom sizes, materials and finishes are welcome; send us your drawing or sample for a quotation within 24 hours.

Material	Spring steel (65Mn, 50CrV4 / 51CrV4, C75S), stainless steel (SS301 / SS304 / 17-7PH)
Standard	DIN 2093 / EN 16983, DIN 6796, or custom drawing
Thickness	0.2 – 10 mm
Sizes	DIN 2093 Series A / B / C, or custom OD / ID / height
Surface Finish	Black oxide + oil (standard), phosphate + oil, zinc flake (Geomet / Dacromet), mechanical zinc, passivation (stainless)
Heat Treatment	Hardening and tempering to 42 – 52 HRC on in-house line; shot peening and presetting on request
Inspection	Load–deflection test, hardness test, dimensional inspection, salt-spray test
Certification	IATF 16949:2016, ISO 9001
Packing	Oiled, VCI bags, cartons on pallets, or per customer requirement

* Custom specifications available on request. Please send your drawing for an exact quotation.

Typical applications: Bolted joints, clutches & brakes, valves, bearing preload, heavy machinery
